AAC Slabs Info
Overview

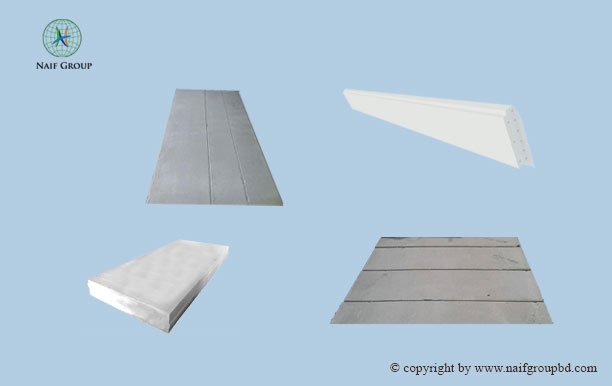

Leveraging the dedicated staff and the modern equipments, we are offering our esteemed customers with a range of AAC Slab. Manufactured as per the international standards, the products are fabricated using the high grade raw materials. Our products are highly demanded in the industry for their superior quality and precision finish.
Product Dimensions
| Thickness (mm) | Width (m) | Max length (mm) | Pieces per pallet | Pallet volume (m3) |
|---|---|---|---|---|
| 100* | 600 | 6,000 | 15 | 5.40 |
| 150** | 600 | 6,000 | 10 | 5.40 |
| 200 | 600 | 6,000 | 7 | 5.04*** |
| 250 | 600 | 6,000 | 6 | 5.40 |
* Used as floor covering over steel studs only (60x60cm).
** Used as roof slabs for inaccessible roof.
*** 0.36 m3 will be waste material in each pallet
Permissible Dimension Tolerance
| Dimension | Floor or roof panels (mm) | Wall Panels (mm) |
|---|---|---|
| Length | ±5 | ±5 |
| Width | ±3 | ±3 |
| Thickness | ±3 | ±3 |
| Tongue | ±3 | ±3 |
| Groove | ±3 | ±3 |
Thermal Conductivity
| Thermal Conductivity | ||
|---|---|---|
| Thermal Conductivity Steady-State | Class PAC - 6 | |
| 0.13 W/(mK) | ||
As per ASTMC177 Test Method
| Design imposed DL+LL (kg/m2) | Permissible Spans with the following thicknesses (mm) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 150 | 200 | 250 | 300 | |||||||||||
| 250 (kg/m2) | 2850 | 4450 | 5850 | 6000 | 6000 | ||||||||||
| 300 (kg/m2) | 2650 | 4250 | 5500 | 6000 | 6000 | ||||||||||
| 350 (kg/m2) | 2550 | 4000 | 5150 | 6000 | 6000 | ||||||||||
| 400 (kg/m2) | 2450 | 3800 | 5000 | 6000 | 6000 | ||||||||||
| 450 (kg/m2) | 2350 | 3650 | 4800 | 5800 | 6000 | ||||||||||
| 500 (kg/m2) | 2250 | 3500 | 4600 | 5650 | 6000 | ||||||||||
| 550 (kg/m2) | 2000 | 3350 | 4450 | 5450 | 6000 | ||||||||||
| 600 (kg/m2) | 1850 | 2950 | 4150 | 5250 | 6000 | ||||||||||
| 650 (kg/m2) | 1700 | 2700 | 3800 | 4800 | 5900 | ||||||||||
